Mini Beam 380W Moving Head Light

Download User's Manual:

380 Super Beam Manual.pdf

Download Personality:

Personality.zip

Video:

Product parameters:

◆ Voltage: 100V-240V/50-60Hz

◆ Ballast: electronic ballast

◆ Total power: 600W

◆ Light source: 380W Philips long life bubble

◆ Color temperature: 7500K

◆ Average life: 3000 hours

◆ Diameter of light outlet:152MM

◆ Control channel: DMX512 18-channel, master-slave mode, self-walking mode

◆ LCD touch screen control interface, can control the lamp switch function,

display the lamp, lamp use time

◆ Scanning: horizontal 540° , vertical 270°

◆ Color plate: a color wheel, 13 colors plus white light;

◆ Gobo wheel: 14 kinds of gobos

◆ Prism: one rotatable 8 prism and one honeycomb mirror

◆ Stroboscopic: Support mechanical stroboscopic and adjustable stroboscopic

effect, support stroboscopic macro function, stroboscopic frequency is 15 times/second

◆ Lens: high precision optical lens, lens group optical system, electric focus

◆ Beam Angle: 1.6°

◆ Focus: linear electronic focus

◆ Dimming: 0-100% linear adjustment

◆ Automatic horizontal and vertical positioning system

◆ Can set macro command controller to reset function in advance, with automatic

switch electronic monitoring and position error correction built-in cooling

monitoring system

◆ DMX channel level monitoring automatic data transmission fault diagnosis system

◆ Features: bright, fast, silent

◆ Net weight: 14KG

◆ Gross weight: 16KG

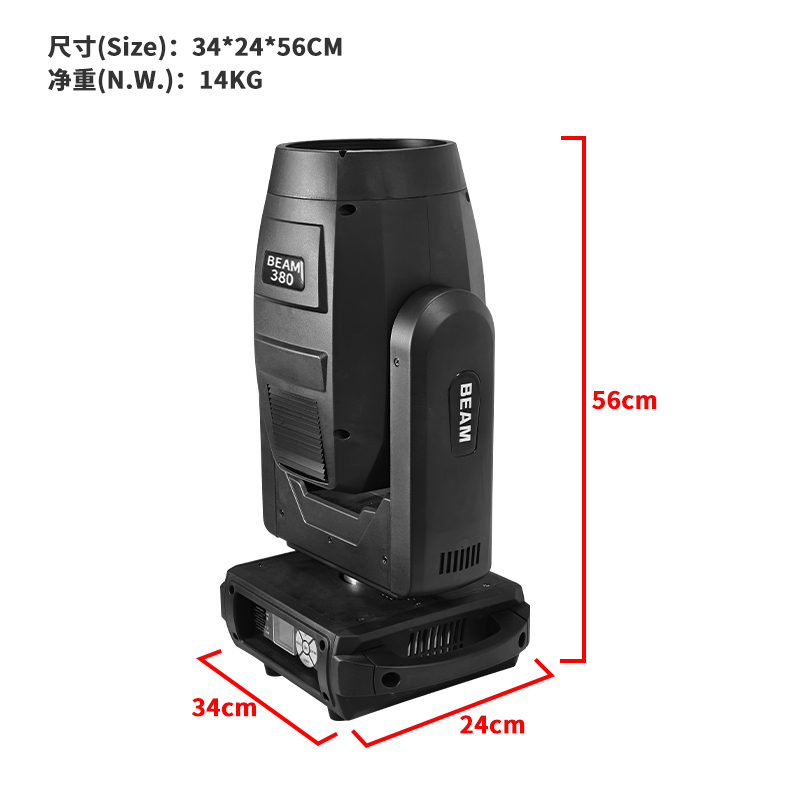

◆ Product size: 34*24*55CM

◆ Carton (1 pack 1) : 45*39*57CM, 16KG

◆ Carton (1 pack 2) : 68*43*76CM, 51.6KG
