IP66 Eagle Strike 380W/470W Beam Moving Head Light

Download User's Manual:

IP66 380 Beam User's Manual.pdf

Download Personality:

Personality.zip

Video:

Specification:

◆ Voltage: 100V-240V/50-60Hz

◆ Shell: Fully die-cast magnesium alloy

◆ Light source: 380W/420WLL Philips long life bulb

◆ Illuminance: 230000LUX@15m

◆ Total power: 600W

◆ Color temperature: 7800K

◆ Average life: 3000 hours

◆ Light output diameter: 160MM

◆ Control mode: DMX512 master-slave mode, self-propelled mode, voice control mode

◆ Channel mode: 18CH

◆ Display: Touch control interface, which can remotely control the bulb switch function and display fan speed and bulb usage time

◆ Scanning: horizontal 540° , vertical 270° , precise positioning of motor magnetic coding

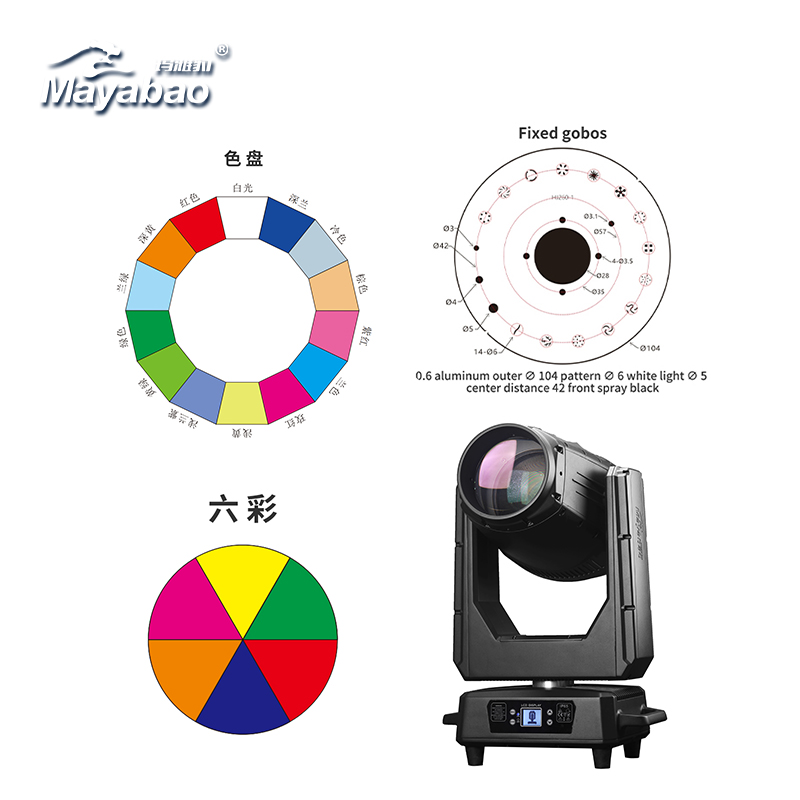

◆ Color wheel: a color wheel, 13 colors plus white light

◆ Gobo wheel: a fixed gobo wheel, 17 gobos

◆ Prism: one 8-prism, one honeycomb prism, can be superimposed

◆ Strobe: supports mechanical strobe and adjustable speed strobe effects, supports strobe macro function, and the strobe frequency is 15 times/second

◆ Lens: High-precision optical lens, lens group optical system, electric focus

◆ Heat dissipation method: air cooling + die-cast magnesium alloy + radiator

◆ Beam angle: 1.6°

◆ Focus: linear electronic focus Dimming: 0-100% linear adjustment

◆ IP rating: IP66

◆ Size：41.5*24*71CM

◆ N.W.：21KG

FEATURES：

1. Lightweight and small size, only 21kg.

2. High protection level: IP66, not afraid of heavy rain.

3. Fast heat dissipation: high heat dissipation performance, extending the li 3. Fast heat dissipation: high heat dissipation performance, extending the life of the lamp.

4. Strong corrosion resistance: suitable for various environments such as seaside 4. Strong corrosion resistance: suitable for various environments such as seaside and desert.

5. Good shock absorption: not afraid of collisions caused by mo 5. Good shock absorption: not afraid of collisions caused by mobile performances bile performances and transportation.
