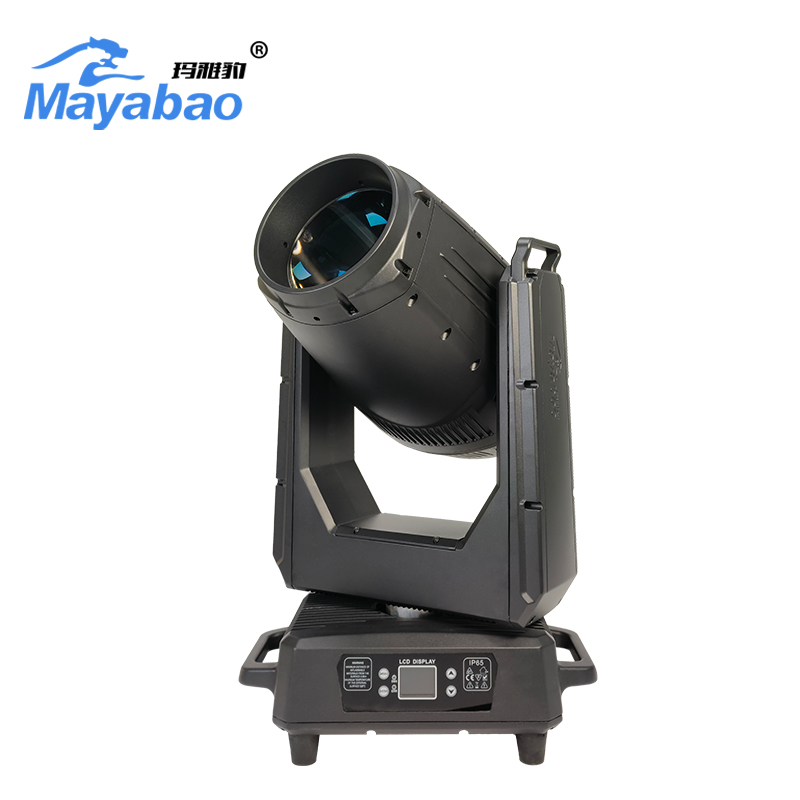

IP66 Waterproof 300W Laser Beam Light

Specification:

Optics:

Light source: 300W laser

Color temperature: 7800K

Light aperture: 160mm

Illumination: 550000Lux@15m

Light source life: 12000 hours

Beam angle: 1°

Effects:

Horizontal scan: 540°

Vertical scan: 270°

Color system: One color wheel, 13 colors plus white light

Gobo system: One fixed gobo plate, 19 gobos plus white light

Focus: Electric focus

Atomization: Atomized glass

Strobe: 0~20Hz

Dimming: 0~100% strobe dimming

Prism: One 8-prism, one honeycomb prism, can be superimposed and rotated independently

Control:

Control mode: DMX512 /RDM

DMX channel: 17CH

Display screen: Touch control interface, display fan speed, Chinese and English switching

Power supply:

Input voltage and frequency: 90~240V, 50/60Hz

Power connection: Waterproof power connector input/output

Signal connection: Three-core or five-core waterproof non-plug socket

Total power: 400W

Power factor: 0.85

Working environment: -20℃~45℃

Physical characteristics:

Dimensions: 41.5*24*70.6CM

Weight: 22kg

Cooling system: Air cooling + die-cast magnesium alloy + radiator

Shell: Magnesium alloy shell Black outdoor paint

Protection level: IP66

Standard: folding split hook, power cord 1PC, signal line 1PC, safety rope 1PC
