Specification:
Light Source: Ushio 520W Long-Life Professional Stage HID Light
Color Temperature: 7000K
Illuminance: 355000Lux@15m Distance
Output Aperture: 200mm
Light Source Lifespan: 3000 hours (data provided by the light source manufacturer)
Beam Angle: 1.5°
Horizontal Scan: 540°, magnetoelectric positioning, 16-bit precision scanning
Vertical Scan: 270°, magnetoelectric positioning, 16-bit precision scanning
Color System: 1 color wheel, 14 colors plus white light
Gobo System: 1 fixed gobo disc, 17 gobos plus white circles
Color Mixing System: Independent CMY linear color mixing system
Focusing: Motorized focusing
Fog: Independent fogging
Strobe: 0-20Hz, selectable random strobe and pulse strobe
Dimming: 0-100% strobe plate dimming
Prism: 1 x 6-row prism, 1 x 8+16 double-layer prism, 1 x 8 prism, bidirectional rotating and stackable
Control Method: DMX512, RDM
Channels: 20CH/24CH
Display: Touch control, with manual reverse and screen lock functions
Power Connection: Waterproof Seetronic power input/output socket
Signal Connection: Three-pin waterproof Seetronic signal input/output socket
Total Power: 620W
Operating Environment: -20℃~45℃

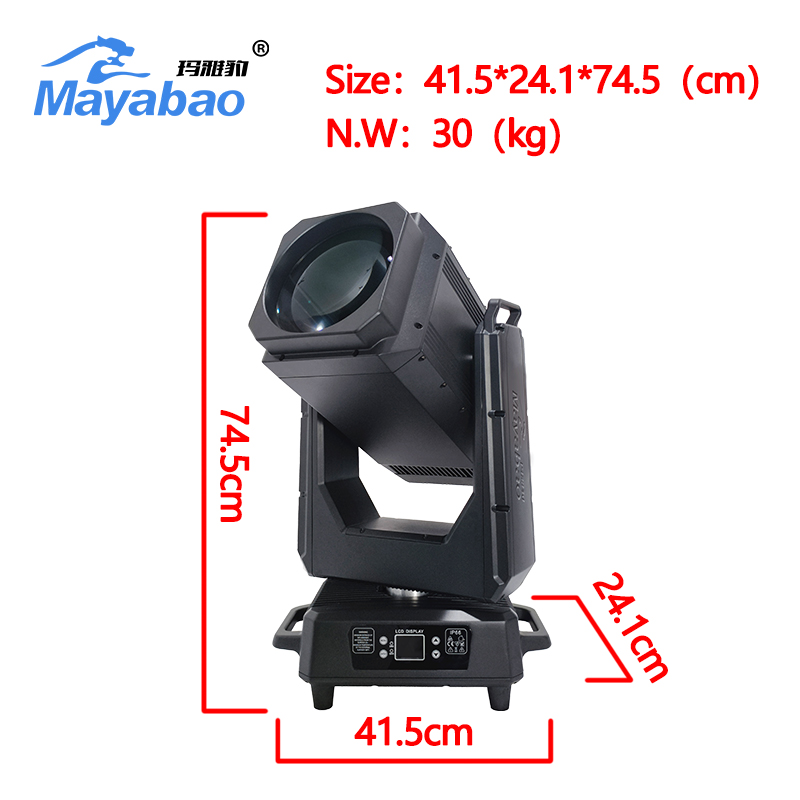

Dimensions: 41.5*24*73cm
Weight: 30kg
Casing: Magnesium-aluminum alloy casing, lightweight, high temperature resistant, salt spray resistant, corrosion resistant
Cooling System: Copper pipe heat conduction + waterproof silent fan
Protection Rating: IP66
