IP66 Eagle Strike 380W/470W BWS 3 in 1 Moving Head Light

Download User's Manual:

IP66 380 BSW User's Manual.pdf

Download Personality:

Personality.zip

Video:

Specification:

◆ Voltage: 100V-240V/50-60Hz

◆ Light source: 380W/420WLL Philips long life

◆ Total power: 600W

◆ Color temperature: 7800K

◆ Average life: 3000 hours

◆ Light output diameter: 138MM

◆ Zoom range: 2-40 degrees

◆ Control mode: DMX512, RDM

Channel mode: 18CH/22CH

◆ Display: Touch control interface with RDM, which can remotely control the bulb switch function and display fan speed and bulb usage time.

◆ Scanning: horizontal 540° , vertical 270° , precise positioning of motor magnetic coding.

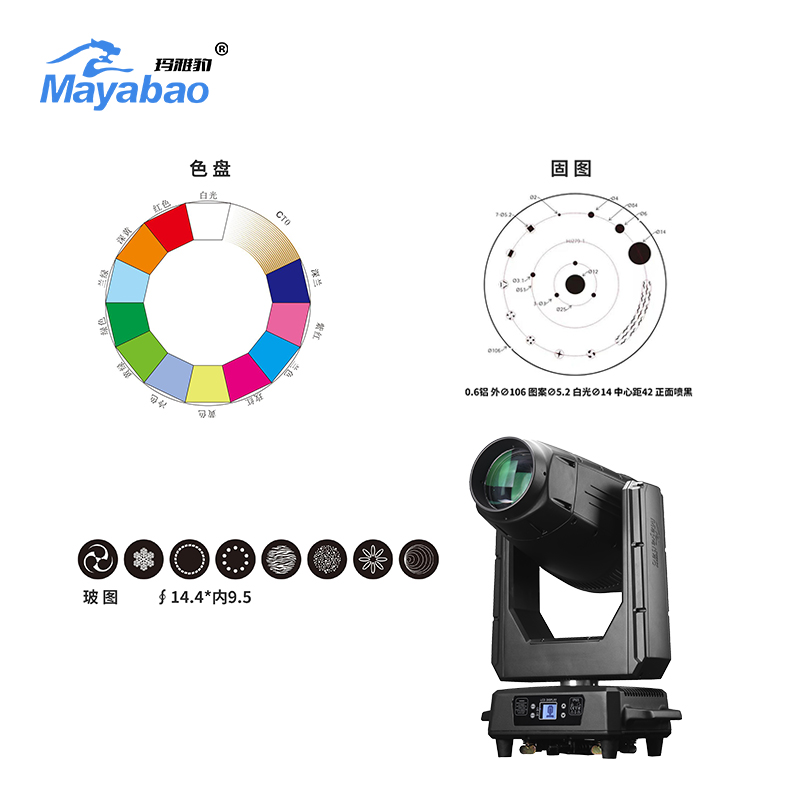

◆ Color Wheel: One color wheel, 11 colors plus white light

◆ CTO: 7500-3200K

◆ Gobo plate 1: a fixed gobo plate, 11 gobos,

◆ Gobo plate 2: a rotatable gobo plate, 8 gobos, customizable

◆ Effect plate: can flow water back and forth.

◆ Prism: an 8-prism, a 6-row mirror, can be superimposed, can be Independent rotating

◆ Strobe: supports mechanical strobe and adjustable speed strobe effects, supports strobe macro function, and the strobe frequency is 15 times/second

◆ Lens: High-precision optical lens, lens group optical system, electric focus

◆ Focus adjustment: linear electronic focus adjustment Light adjustment: 0-100% linear adjustment

◆ Shell: full die-cast magnesium alloy material

◆ Heat dissipation method: air-cooled die-cast magnesium alloy + radiator

◆ IP rating: IP66

◆ Size：41.5*24*77CM

◆ N.W.：24KG

FEATURES：

1. Light weight and small size, only 24kg.

2. High protection level: ip66, not afraid of heavy rain.

3. Fast heat dissipation: high heat dissipation performance, extending the li 3. Fast heat dissipation: high heat dissipation performance, extending the life of the lamp.

4. Strong corrosion resistance: suitable for various environments such as seaside 4. Strong corrosion resistance: suitable for various environments such as seaside and desert.

5. Good shock absorption: not afraid of collisions caused by mo 5. Good shock absorption: not afraid of collisions caused by mobile performances bile performances and transportation.
