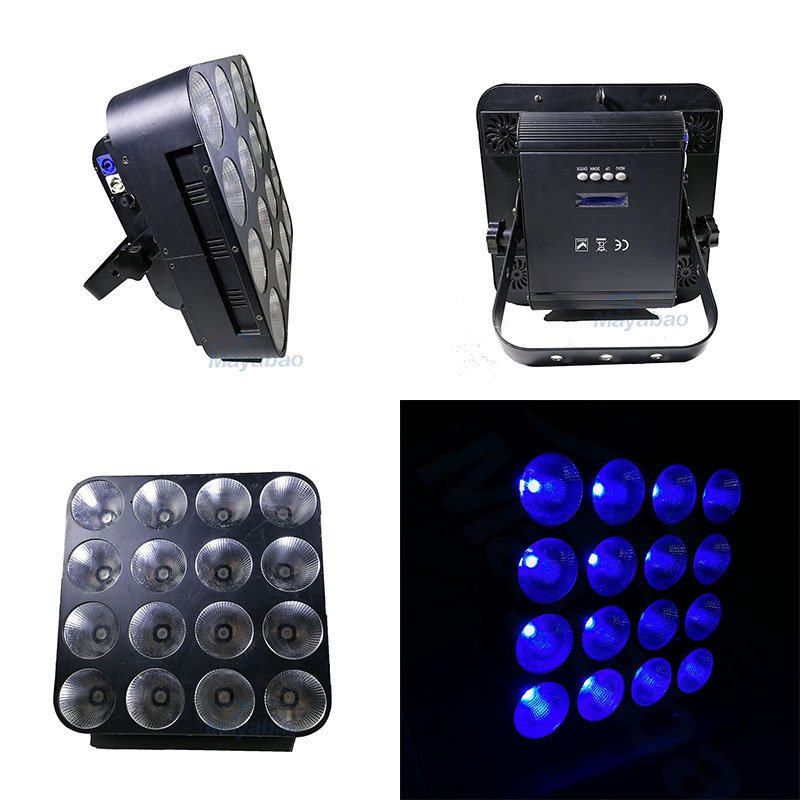

Professional custom 16X30W COB RGB 3in1 led light matrix blinder display

Inquire Online

◆◆ Product Description

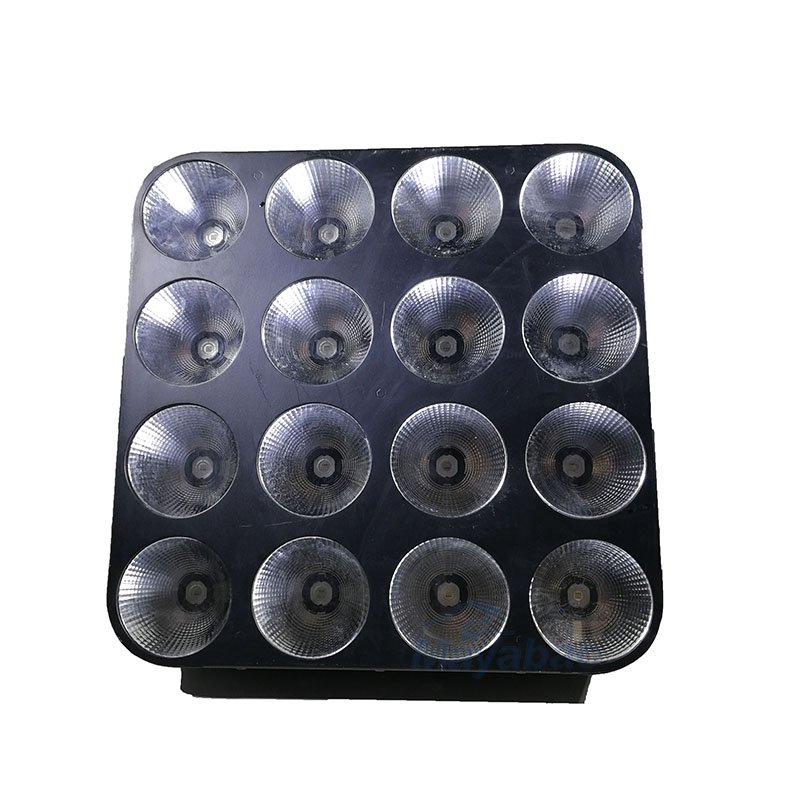

LIGHT SOURCE	LEDs: 16pcs 30W COB RGB 3in1 leds
	LEDs average lifespan: >100,000hrs
	Drive mode: Constant Current
	Drive current(mA): 667
POWER SUPPLY	Power consumption: Max. 500W
	Auto switching power supply unit
	Power supply: AC100V-240V,50/60Hzz(auto-ranging)
	Power In/Out: Blue and White powercon
OPTICS	Beam angle: 31°
	Flicker free(refresh rate>4K Hz)
	Light output(full bright): 2310LUX@1m, 566LUX@2m, 96LUX@5m.....
CONTROL AND PROGRAMMING	Control mode: DMX,auto run,Master/Slave and Sound-active
	DMX channels: 1,3,4,6,16,18,48,49,50,51CH
	Setting and addressing:4-digit LED
	DMX data In/Out: XLR 3Pin(XLR 5pin is optional)
EFFECTS	8 bit smooth dimming
	Electronic dimmer:0-100% linear
	Electronic strobe:1-20 flashes/sec
	Built-in color changing macro,fade in & out macro
	Built-in auto programs and speed adjustable
BODY	Housing: Aluminium, black backing finished
COOLING & THERMAL MANAGEMENT	Cooling: forced air convection, with four silent fan
ENVIRONMENT AND PHYSICAL	IP rating: IP20
	Certificates: CE&RoHS
	Environment temp: -20℃-40℃
	Dimensions(cm): L47.5×W47.5×H13.5
	Packing size(cm): L57×W57×H19
	Weight: 11kg
