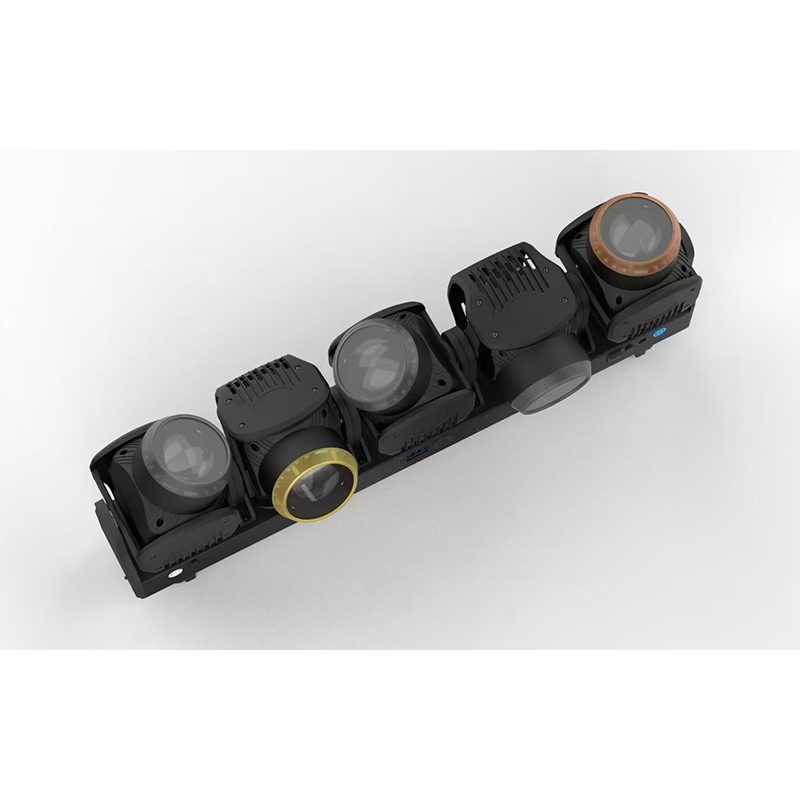

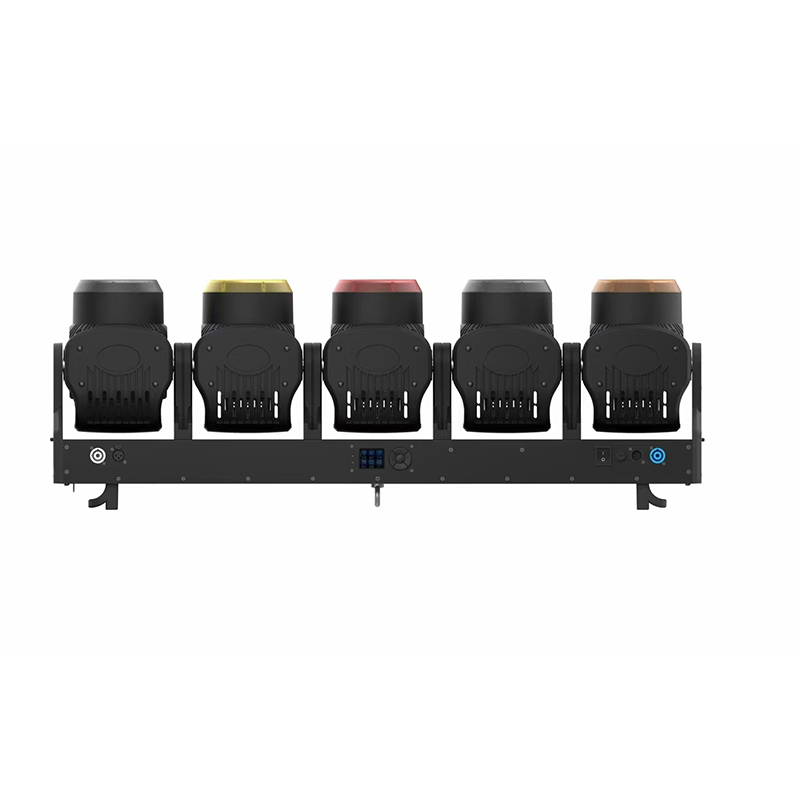

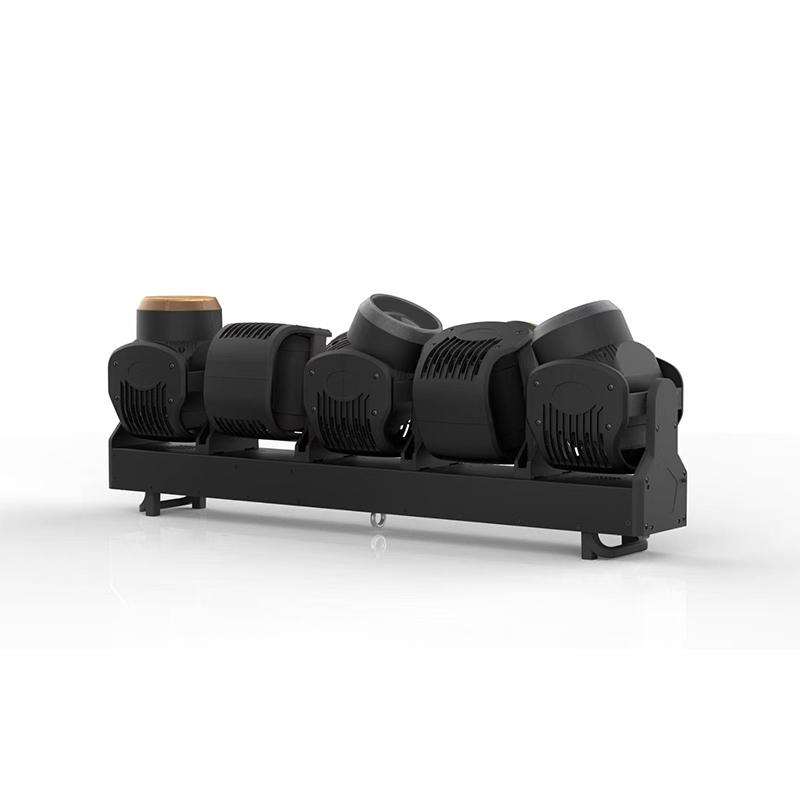

LED 5*120W/5*80W Zoom Moving Head Beam
Specification:
Voltage: AC100-240V 50/60HZ
Power: 700W
Main beam: 120W*5 LED high-brightness light source
Auxiliary aperture: 1W*120 LED5050RGB
Main light color: red, green, blue, lemon green
Display screen: Chinese and English menu, Pocky button 1.77 color screen
Focus system: segmented independent single-point single-control control
Beam angle: 3-30°
Spot angle: 4-35°
Flash frequency: 1-25Hz
Dimming: Electronic dimming 0~100% linear adjustment, with gamma curve dimming frequency 1.2K~25K adjustable, with macro dimming linear stable and smooth without flicker, using stable constant current drive and power supply, suitable for video shooting
Vertical angle: vertical direction 220° (16 bit precision scanning) XY axis adopts high speed and quiet, making the operation faster and smoother. It can automatically return to its original position after a misoperation. The vertical speed is adjustable; Y axis rotation function and inversion function; optical electromagnetic encoding high-precision positioning
Vertical control: 5 lamp heads with XY axis rotation are used, which can be controlled independently
Control signal: DMX512, RDM, master-slave, voice control or self-propelled program
Control channel: CH41, CH71 two channel modes default channel CH41
Power connection method: power input and output, maximum connection quantity @2 units 230V, 1 unit 120V
Signal connection method: DMX512 input and output, 3-core maximum connection quantity 30 units
Support network protocol Artnet
Splicing method: can be spliced horizontally and quickly
Working temperature: -10°C~45°C
IP level: IP22
