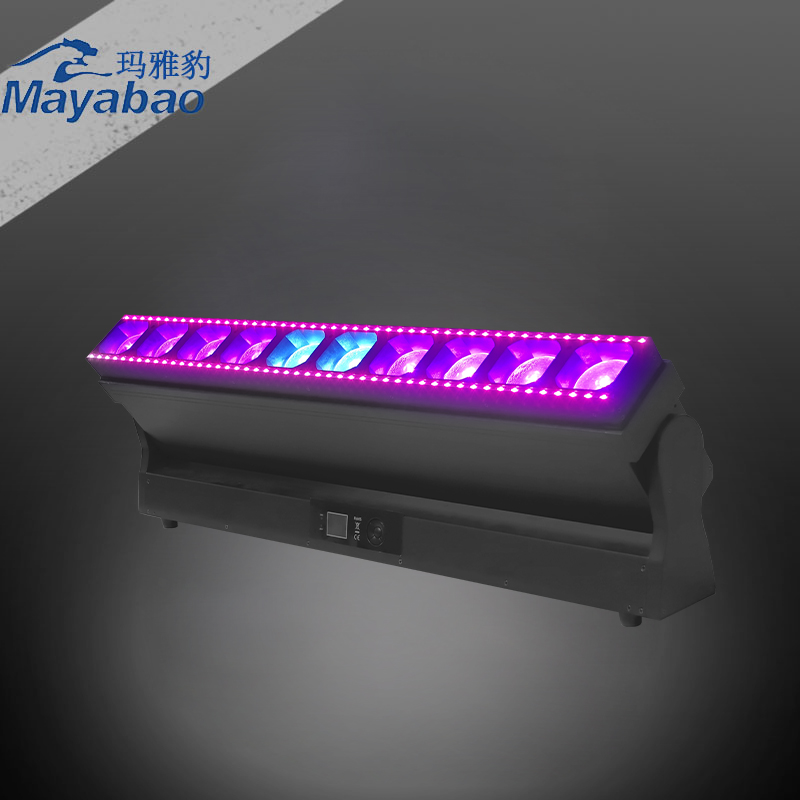

LED 10x60W Beam Wash Strobe Multifunctional Bar Light

Download User's Manual:

1060 LED Bar Light Manual.pdf

Download Personality:

Personality.zip

Video:

Specification:

◆ Input voltage: AC100-240V/50-60HZ

◆ Main light source: 10x60W RGBW LED

◆ Fill light: 96X3W CW LED

                 96X3W WW LED

                 96X0.5W RGB LED

◆ Total power: 750W

◆ Channel mode: 17CH/27CH/99CH/108CH/168CH/170CH

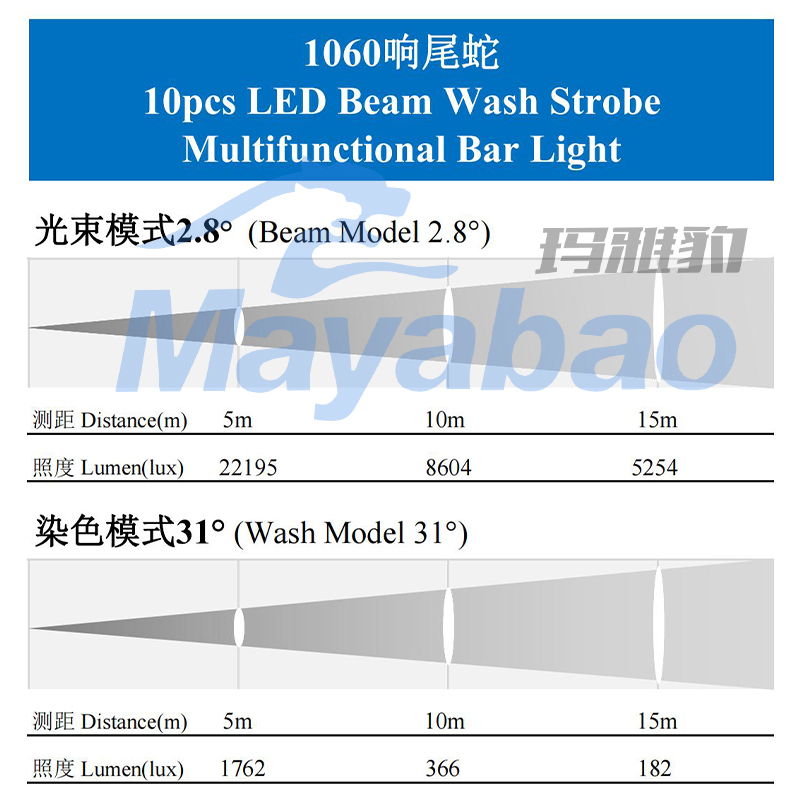

◆ Beam angle: 2.8~31° (beam end)

◆ Spot angle: 5~46° (beam end)

◆ White light color temperature 6000k

◆ Luminous flux: 22000lm

◆ Light source life: about 50,000 hours

◆ Worksite: Suitable for any safe indoor work site

◆ Display mode: LCD display, temperature display, Chinese and English display,

display inversion

◆ Working mode: DMX512 mode, mode, mode, master/slave mode

◆ Y-axis automatic error correction function, including rich built-in programs

◆ Dimming level: 0-100% perfect linear dimming

◆ Working environment: 0~40℃ , maximum surface temperature 65℃

◆ Protection level: IP20

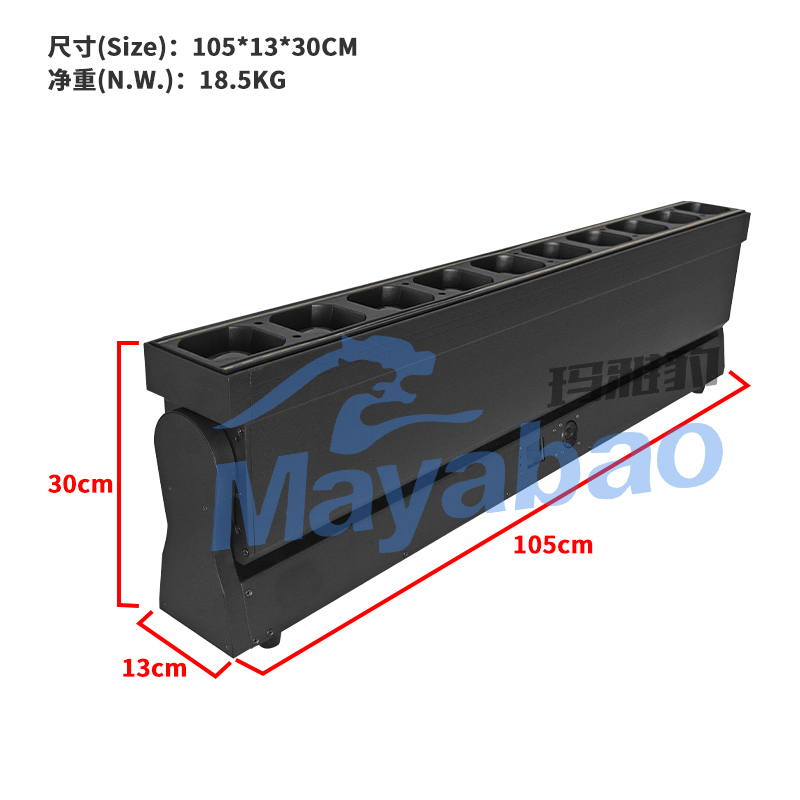

◆ Size: 105*13*30CM

◆ N.W.: 18.5KG
