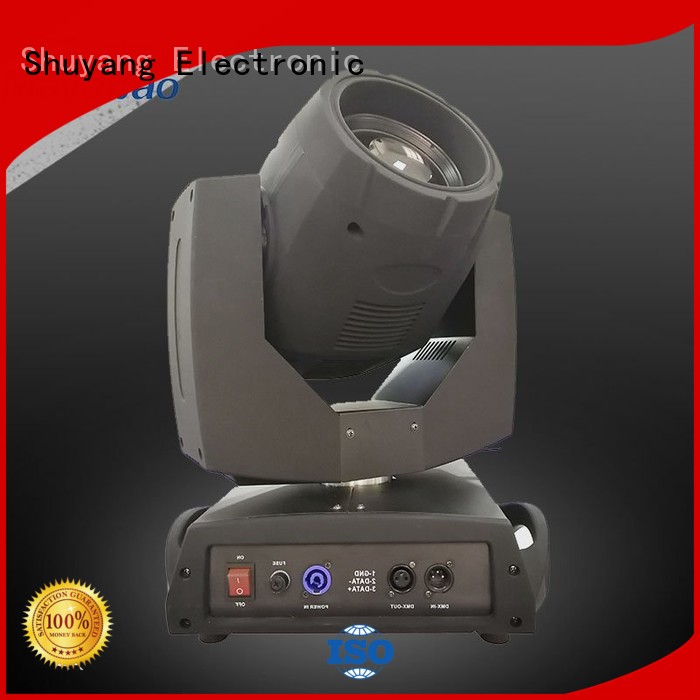

   The beam 230 7r manual is extremly versatile and has everything clubs,theaters,churches,concert production and lighting professionals are looking for in a professional beam moving head .
| Voltage | AC100-240V 50/60 Hz |
| Bulb | 7R SIRIUS HRI 230W |
| Color temperature | 8,000 K |
| Zoom | 0 to 3.8° |
| Light output at 20 meters (65 feet) | 59,760 lux |
| Color wheel | replaceable color wheel with 14 colors + open |
| Gobo wheel | replaceable gobo wheel with 17 fixed gobos + open |
| Prism | 8-facet prism and prism zoom |
| Channels | 20CH |
| Mechanical dimmer | PAN = 540°TILT = 270° |
| Maximum speeds | PAN = 2.45 sec TILT = 1.30 sec |
| Resolution | PAN = 2.11°PAN FINE = 0.008° |
| DMX protocol signal | DMX 512 |
| Display | Graphic LCD backlit b/w Display |
| Pan/Tilt Resolution | 16 bit |
| Movement control | vectorial |
| DMX signal connection | 3 and 5 pole XLR input and output with Ethernet connection |




new arrival 350W 17r beam moving head spot light for stage
Specification
Voltage:AC110-240V,50/60Hz
Light source:330W/350W
Dimmer:0-100% linear dimming
Strobe: double strobe (0.5-9t/s)
Frost:0-100% linear frost
Focus: Electronic focusing
Optical lens: 2-in-1 high-precision glue optical lens.
Prism wheel:built-in doubleprism,with variety prism effect for optional
Color wheel:1 fixed color wheel,13 colors+white,Rainbow effect speed adjustable, half-step color effect
Fixed gobo wheel:1 fixed gobo wheel,13 gobos+white,Two-way variable speed rotation
Horizontal scanning: 540 degrees (160bit precision scanning) electronic error correction.
Vertical scanning: 250 degrees (160bit precision scanning) electronic error correction.
Control mode: 16 international standard DMX512 channels, master-slave mode.
Display: Colorful touch screen display
Ballast: electronic Ballast to make the product lighter, brighter, more stable bulb, more environmentally friendly, energy saving.
Picture show


G.W.:19KG
Packing Size:46*40*66cm
