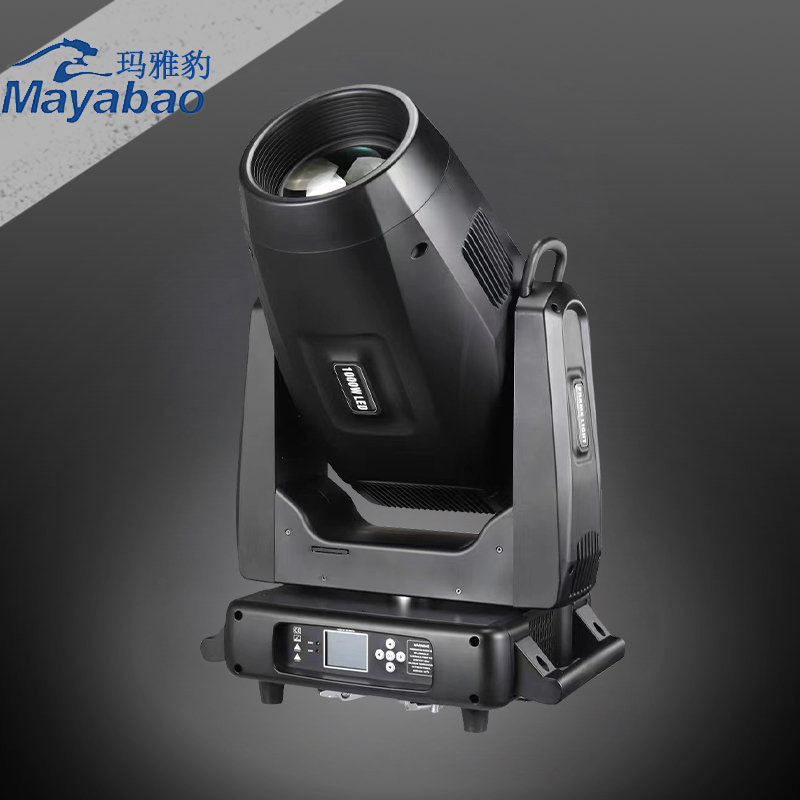

LED1000W Spot Framing Moving Head with CMY CTO

LED1000W Spot Framing Moving Head with CMY CTO

Specification:

Input voltage: AC100-240V, 50/60Hz

Rated power: 1050W

Light source: 800W LED module

LED life: 20,000 hours

Color temperature: 6500K

Color rendering index: standard mode Ra>75, high display mode Ra>90

Luminous flux: 28000LM

Power interface: 16A power plug

Signal interface: three-core XLR

Control mode: DMX512, RDM

Channel mode: international standard DMX512 36 channels

Display system: 2.7-inch touch LCD display, Chinese and English display, 180-degree rotation

Color mixing system: independent CMY color mixing system

Color temperature adjustment: independent CTO 2800K-6500K linear adjustment

Prism disk: rotating 3 prisms + 6 rows of mirrors

Effect panel: dazzling simulation of dynamic swaying flames, gurgling water and other dynamic effects

Color wheel: 6 colors + white light

Fixed pattern: 11 fixed pattern pieces with an outer diameter of 25.4mm + white circle

Rotating pattern: 7 plug-in patterns with an outer diameter of 26.9mm, an effective diameter of 16.5mm, and a thickness of 1.1mm

Cutting system: 4 independent cutting blades, each of which can be closed individually and can be rotated 90°

Atomization system: 0~100% linear atomization

Aperture system: 6%~100% smooth adjustment

Zoom system: 6°~ 50° linear focus

Dimming system: 0-100% linear adjustment

Strobe system: the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected Horizontal scan: 540° (16-bit precision scan)

Vertical scan: 270° (16-bit precision scan)

Protection class: IP20

Working environment: 0-45℃

Product size: 510L*345W*800H(mm)

Product appearance: flame retardant, high-temperature resistance, folding integrated lamp hook
