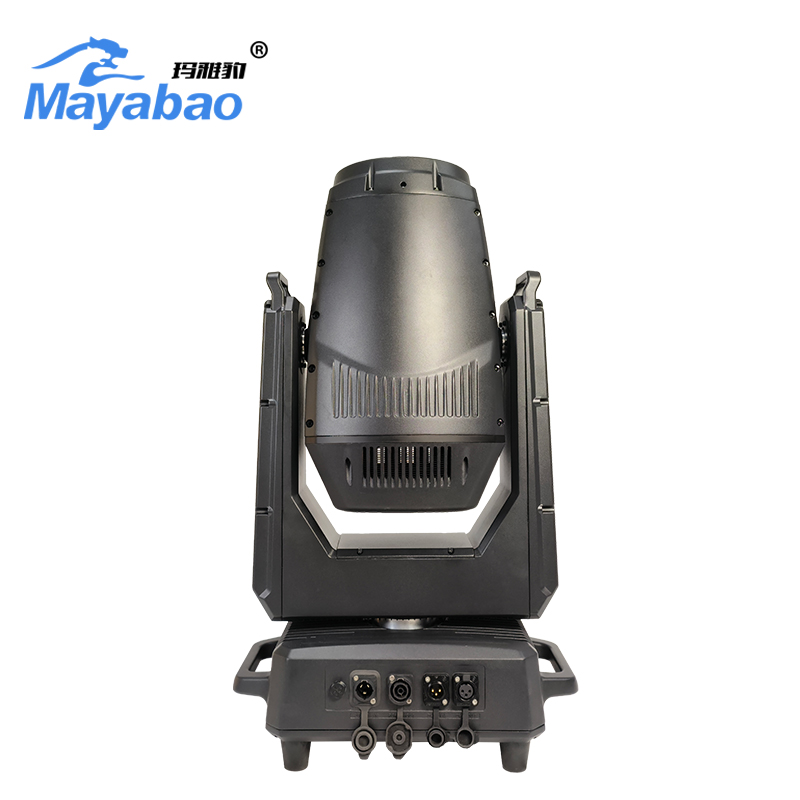

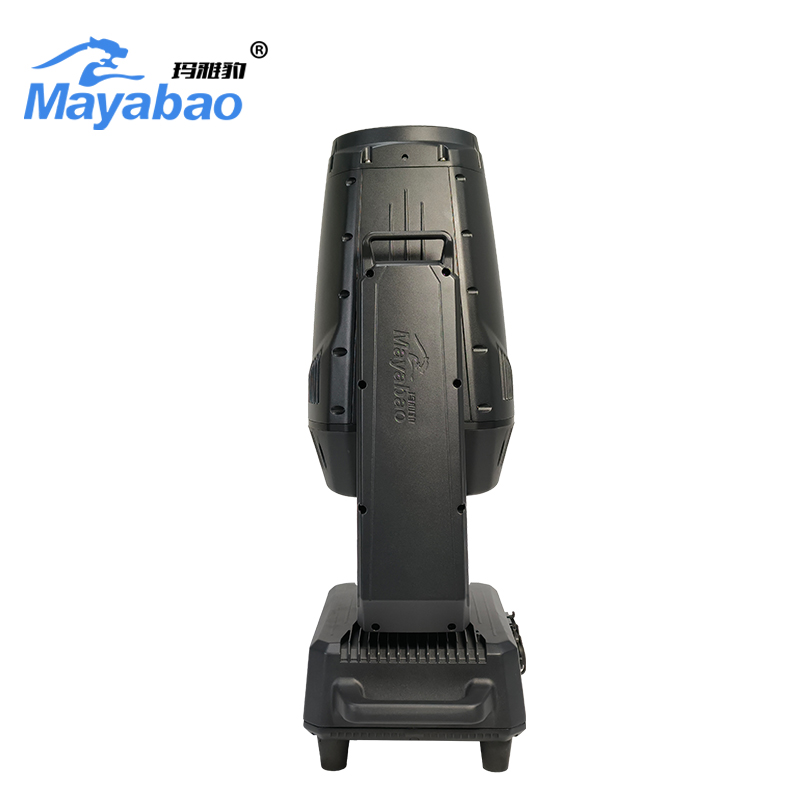

IP66 Waterproof LED 500W CMY BWS 3 in 1 Moving Head Light

Specification:

l Light source: 500WLED module, Light source life: ≥20000 hours

l Color temperature: 8000K

l Light output diameter: 138mm

l Illuminance: 12000Lux@15m (3°)

l Zoom range: 3-30 degrees

l Horizontal scanning: 540°, using advanced magneto-electric positioning system, 16-bit scanning

l Vertical scanning: 270°, using advanced magneto-electric positioning system, 16-bit scanning

l Color system: 1 color wheel, 8 colors

l Color mixing system: CMY infinite color mixing

l CTO color temperature: 3200-8000K adjustable

l Fixed pattern: 1 fixed gobo plate, 11 gobos

l Rotating pattern: 1 rotatable gobo plate, 8 pluggable gobos

l Prism: 1 8-prism, 1 6-row mirror, can be superimposed and rotated independently

l Focus: electric focus

l Fog: independent fogging lens, light transmittance greater than 90%

l Frequency Flash: 0~20Hz, optional random strobe and pulse strobe

l Dimming: 0~100% linear dimming

l Control mode: DMX512, self-propelled, voice control, RDM

l Channel: 23CH

l Display: touch control interface, display temperature, lamp brightness

l Input voltage: AC90-240V, 50/60 Hz

l Power connection: waterproof power connector input/output

l Signal connection: three-core or five-core waterproof XLR socket

l Total power: 500W, Power factor: 0.85

l Working environment: -20℃～45℃

l Dimensions: 41.5*24*70.6cm

l Net weight: 23kg

l Shell: magnesium alloy shell, black outdoor paint

l Cooling system: air cooling + die-cast magnesium alloy, full temperature monitoring, automatic over-temperature protection

        l Protection level: IP66
