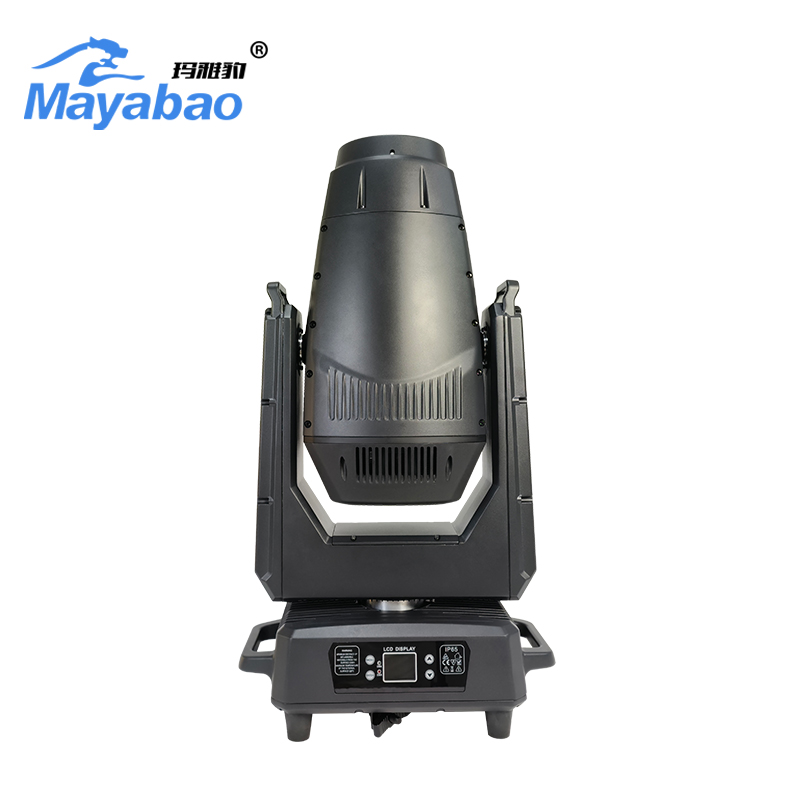

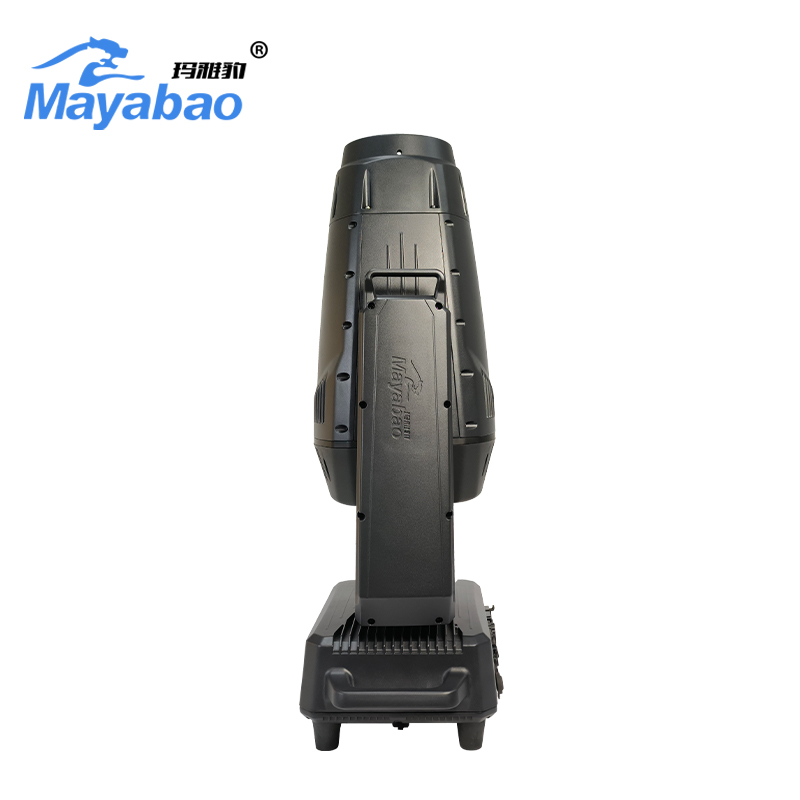

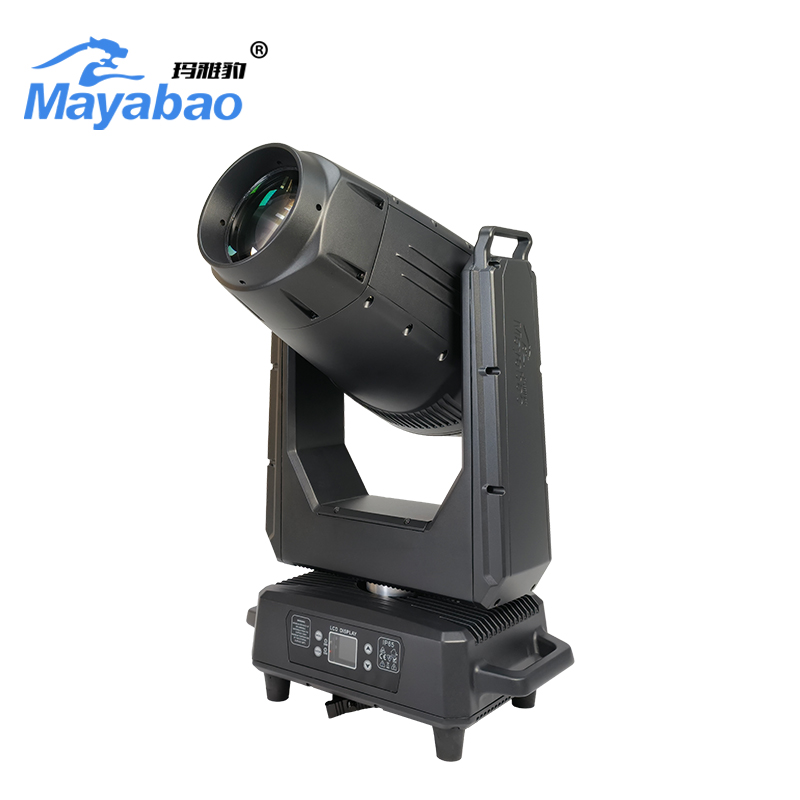

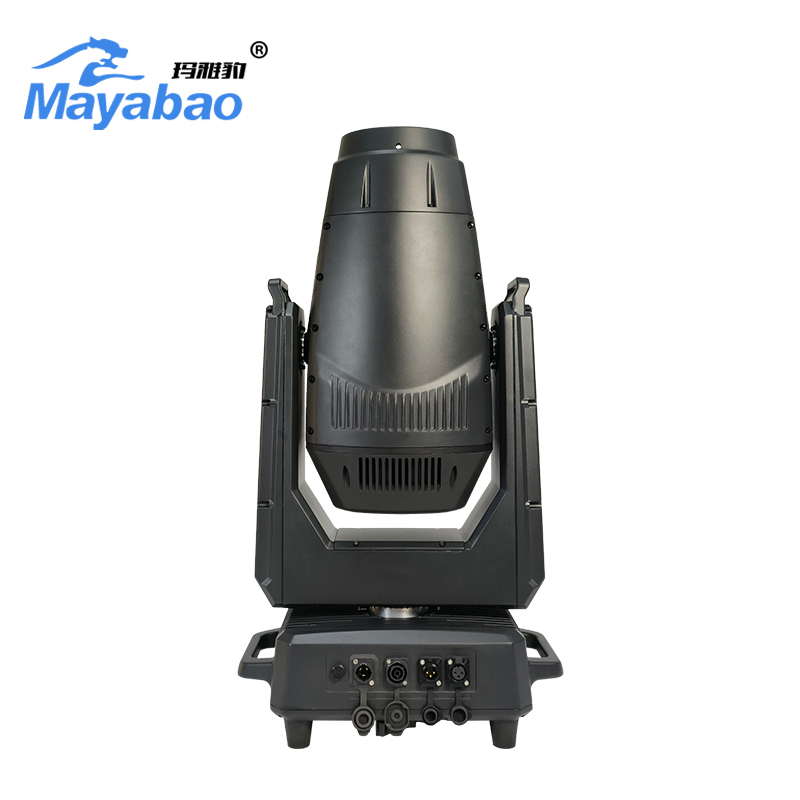

IP66 Waterproof LED 800W/1000W Waterproof Frame Spot Light

Specification:

Light source: 700W LED, Life: ≥20000 hours

Color temperature: 7000K

Light output aperture: 138mm, Zoom range: 5-42°

Illumination: 13000Lux@15 m @5 degrees

Display: standard mode Ra≥75, high display mode Ra≥90

Horizontal scanning: 540°, using advanced magnetoelectric positioning system, 16bit scanning

Vertical scanning: 270°, using advanced magnetoelectric positioning system, 16bit scanning

Color system: 1 color wheel, 7 colors + white. Color mixing system: CMY infinite color mixing

CTO color temperature: 3200-8000K adjustable

Fixed gobo: 1 fixed gobo plate, 4 kinds of metal gobo + dynamic flame

Rotating gobo: 1 rotating gobo plate, 7 kinds of pluggable glass gobos

Cutting system: 4-piece graphic cutting system, accurate positioning, 90°rotatable

Prism: one 3 prism, reversible rotation, adjustable rotation speed

Focus: Electric focus

Atomization: 1 independent soft light mirror +1 CRI chip

Strobe: 0~20Hz, optional random strobe and pulse strobe

Dimming: 0~100% linear dimming

Control mode: DMX512, self-walking, voice control, RDM

Channel: 38/41CH

Display: Touch control interface, display temperature, light source brightness

Input voltage: AC90-240V, 50/60 Hz

Power connection: Seetronic power socket /16A waterproof plug is optional

Signal connection: Seetronic signal socket/three-core signal waterproof plug

Power: 850W, Power factor: 0.85

Working environment: -20℃ ~ 45℃, Protection level: IP66

Size: 41.5*24*76.6cm, Net weight: 28kg

Outer shell: magnesium alloy shell, black outdoor paint

Heat dissipation system: ultra-quiet air cooling + magnesium alloy body + Copper tube heat conduction radiator
