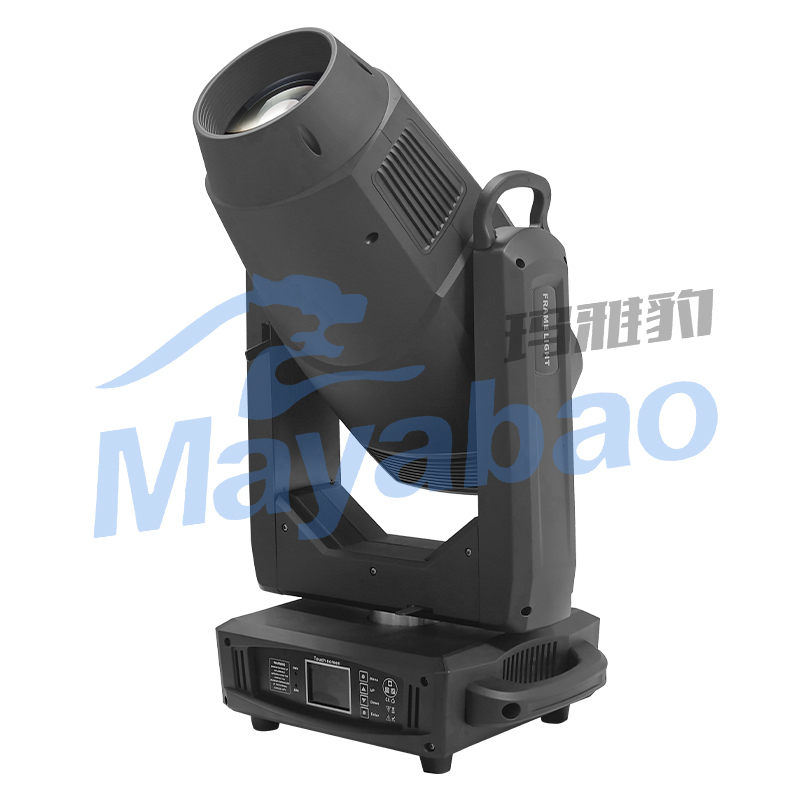

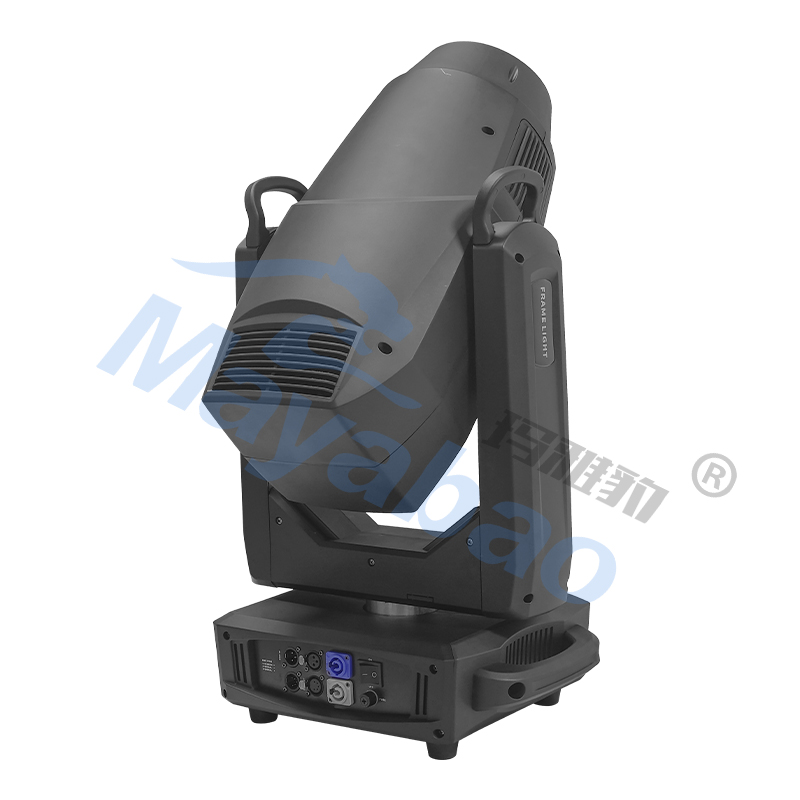

LED 800W Frame Spot Light

Download User's Manual:

LED800W frame spot manual.pdf

Download Personality:

Personality.zip

Video:

Specification:

Input voltage: AC100-240V, 50/60Hz

Whole lamp power: 830W

Type: 700W white light LED module

Average lifespan: >20,000 hours

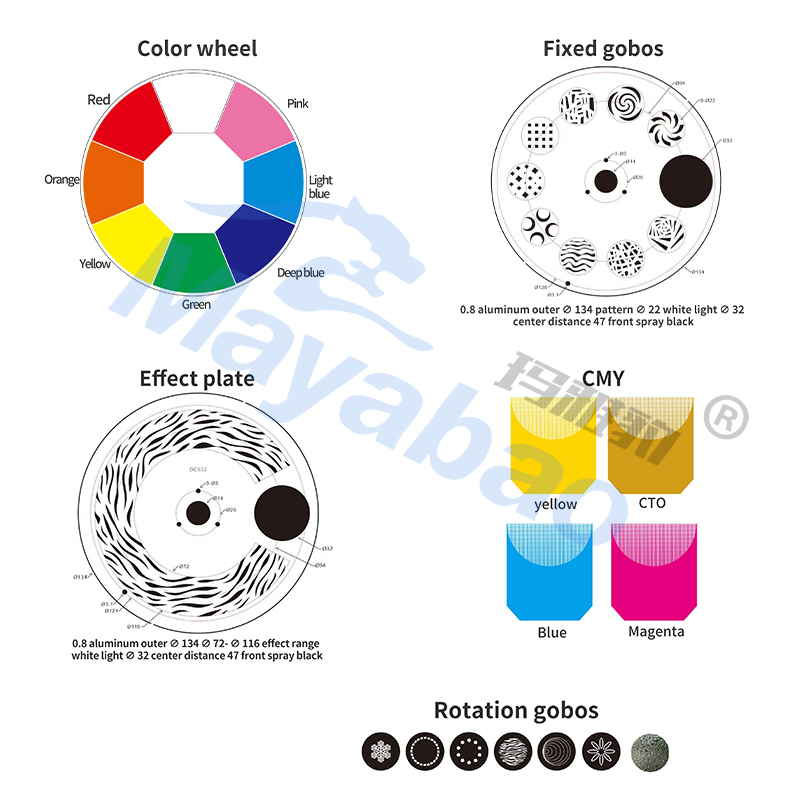

Color system

1 color wheel: 7 colors + open; rainbow effect with two-way rotation

CMY+CTO linear color mixing, color temperature adjustment function

Gobo system

1 rotating gobo wheel: 7 plug-in rotating gobos + open; with gobo jitter and flow functions

1 fixed gobo wheel: 9 fixed gobos + open; with gobo jitter and flow functions

1 flame plate: with jitter and flow functions

Effect

Zoom and focus: electronic linear zoom 5° -48° , focusing distance 3 meters to infinity

1 cutting disc: a set of spot angle cutting systems consisting of 4 independently

moving angle cutting pieces. The entire angle cutting system can rotate 90°

Aperture: 5%-100% linear adjustment

1 prism disk: 1 bidirectional rotating 4-prism

Atomization: a separate diffuser

Dimming and strobe: 0-100% linear electronic dimming; fast electronic strobe

Display and control

Display and main control: LCD display, supports switching between Chinese and English; lamp information can be queried;

Channels: Standard 39 channels/Simplified 34 channels

Control: DMX512 control, supports RDM function; upgrade the lamps through DMX signal line

Intelligent cooling: temperature sensing detection, fan speed adaptive adjustment

Scanning

Horizontal scan: 540° (16 bit resolution)

Vertical scan: 245° (16 bit resolution)

With automatic error correction reset function

Size and weight

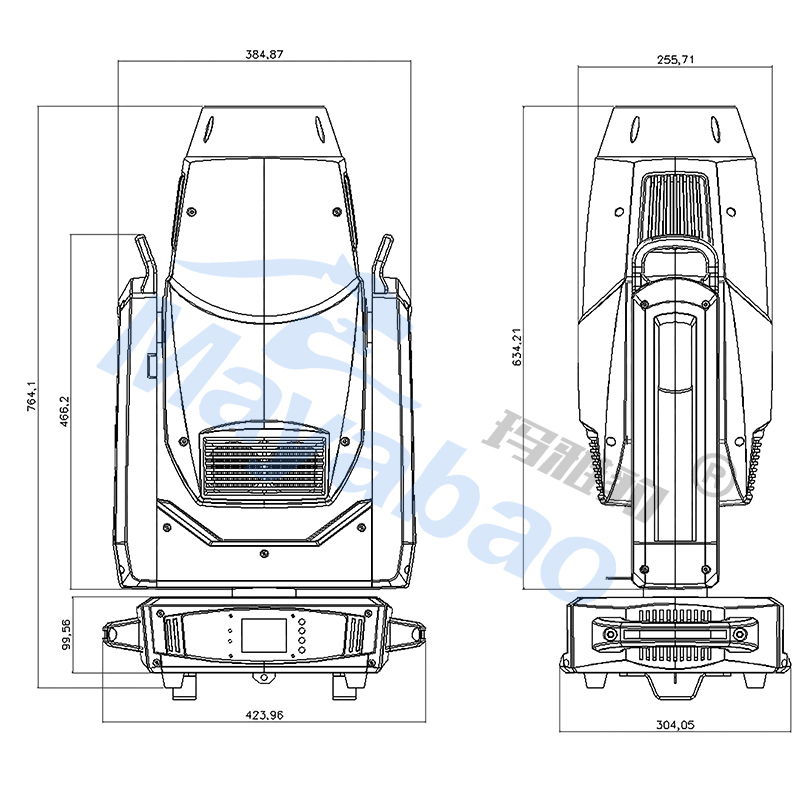

Product size: 359x264x665mm

Net weight: 28kg
