Lamp | OSRAM SIRIUS HRI 280; |
power | 110-240V,50/60Hz; |
Total power | 470W; |
Display | 2.2 inch screen display, can reverse 180° |
Color wheel | 13 colors+white. |
Fixed gobo | 14 gobo + white. |

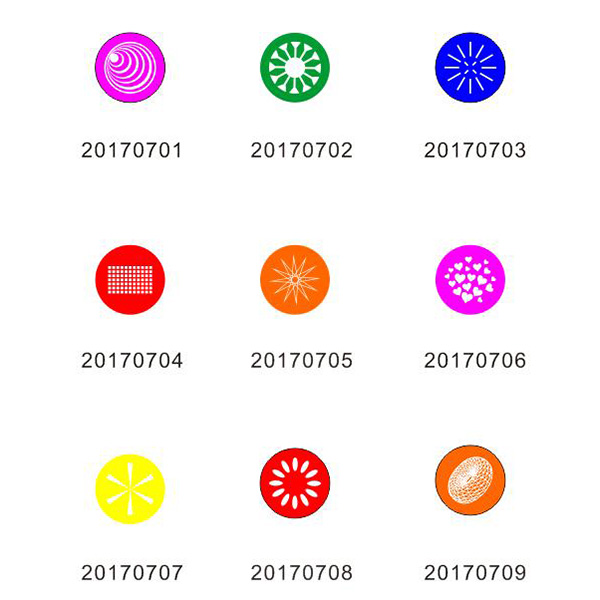

Rotation gobo | 9 gobo+ white,changeable; |
Gobo size diameter | 14.9mm ,image diameter 13mm; |
Prism | 8 facet prism+ 6 l inear prism ,Frost function; |
Beam angel | 2.5~20°; |
Dimmer | 0-100% l inear adjustment ; |
Pan | 540°; 8Bit/16Bit ; |
Ti lt | 270°; 8Bit/16Bit ; |
PIP Rate | IP20; |
Product size | 382x365x587 mm; |
Flycaes | 960x510x740 mm; |
Carton box | 460x440x580 mm; |
N.W | 16KG ; |
G.W | 73 KG(with flycase 2 in 1); |
G.W | 20KG(carton box). |
Channel Control Description
CHANNEL | CHANNEL MODE | |
16 | 14 | |
1 | PAN | PAN |
2 | TILT | PAN FINE |
3 | PAN/TILT TIME | TILT |
4 | LAMP CONTROL&RESET | TILT FINE |
5 | COLOUR WHEEL | PAN-TILT TIME |
6 | STATIC GOBO WHEEL | LAMP CONTROL&RESET |
7 | EFFECT GOBO | COLOUR WHEEL |
8 | EFFECT GOBO ROTATION | COLOUR WHEEL FINE |
9 | PRISM1 + PRISM2 | EFFECT GOBO SPEED |
10 | PRISM1 ROTAATION | STATIC GOBO CHANGE |
11 | PRISM2 ROTAATION | EFFECT GOBO |
12 | FROST | EFFECT GOBO ROTATION |
13 | ZOOM | PRISM1 + PRISM2 |
14 | FOCUS | PRISM1 ROTAATION |
15 | STOP/STROBE | PRISM2 ROTAATION |
16 | DIMMER | FORST |
17 | ZOOM | |
18 | ZOOM FINE | |
19 | FOCUS | |
20 | FOCUS FINE | |
21 | RFU | |
22 | STOP/STROBE | |
23 | DIMMER | |
24 | DIMMER FINE |

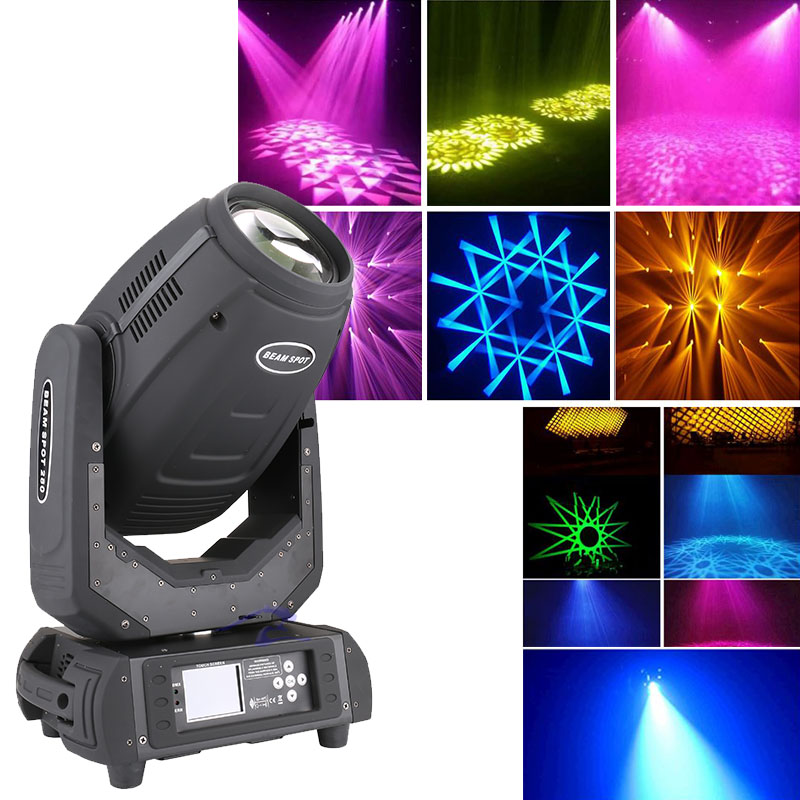

10R beam spot wash light SY-S280
1. Q: Are you a factory or trading company?
A: We are a real manufacturer of professional stage lighting.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Guangzhou, China. Our factory is not far away from Baiyun Airport .
you can call me to pick you up when you are arrived at baiyun airport .
3. Q: how long is the warranty ?
A: 2 years warranty . if there are some problems with our quality . send me video or pictures to show the problems . and we will send new parts(ecxept fo the bulb) for free . but you have to pay the freight .
4. Q: Do you have CE/ROHS certificate?
A: Yes, we can offer the CE/ROHS certificates as to your requirements.
5. Q: What's the shipping method and deliery time?
A: Our products could be shipped by Sea, by Air or by Express. Which method to be used is
based on the weight and size of the package and with consideration of customer's requirements.
By sea: 20-40 days;By air: 5-10 days ; By express: 3-6 days.
